45% - 95% Efficiency Bag Air Filters With Large Dust Holding Capacity
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Bag Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Frame: | Aluminum Or Galvanized Steel | Keyword: | Bag Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | 45% - 95% |
| Condition: | New | Feature: | High Durability |
| Highlight: | 95% Efficiency Bag Air Filters,GI Frame Bag Air Filters,F9 Pocket Bag Filter |
||
Product Description

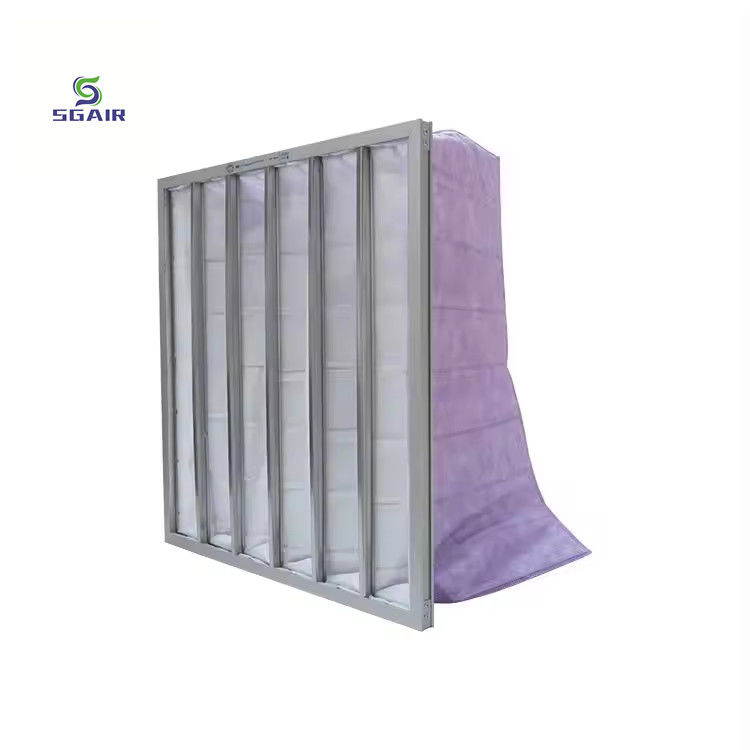

High Efficiency Filtration Bag Air Filters Large Dust Holding Capacity
Description:
- Media: Dual layer progressively structured synthetic fibre
- Frame: GI; AI
- Efficiency range from F5,F6,F7,F8,F9 (EN 779)
- Average Efficiency: 45%;65%;85%;95%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 90 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 24 inch(600mm)
- No stitch holes emission.
- Gasket: EVA
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
1. Home environment
Home is the main place for our daily life. HEPA filters can effectively remove dust, pollen, pet hair, etc. in the home, improve indoor air quality, and are very helpful to residents' health.
2. Medical places
Hospitals, clinics and other medical places have high requirements for air cleanliness. HEPA filters can filter harmful substances such as bacteria and viruses to ensure the health and safety of patients and medical staff.
3. Clean workshops
For clean workshops in the pharmaceutical, semiconductor, aerospace and other industries, HEPA filters can effectively remove various tiny particles and maintain an ultra-clean air environment.
There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose
Specifications:
| Size(HxWxD)mm | No.of Pockets | Rated Airflow(CFM) | Initial Resistance(Pa) |
| 595x595x600 | 8 | 2000 | 85 |
| 595x595x600 | 6 | 1650 | 85 |
| 595x595x381 | 8 | 1500 | 85 |
| 595x595x381 | 6 | 1250 | 85 |
| 595x495x600 | 6 | 1650 | 85 |
| 595x495x600 | 4 | 1000 | 85 |
| 595x295x600 | 4 | 1000 | 85 |
| 595x295x600 | 3 | 750 | 85 |
| 595x295x381 | 4 | 750 | 85 |
