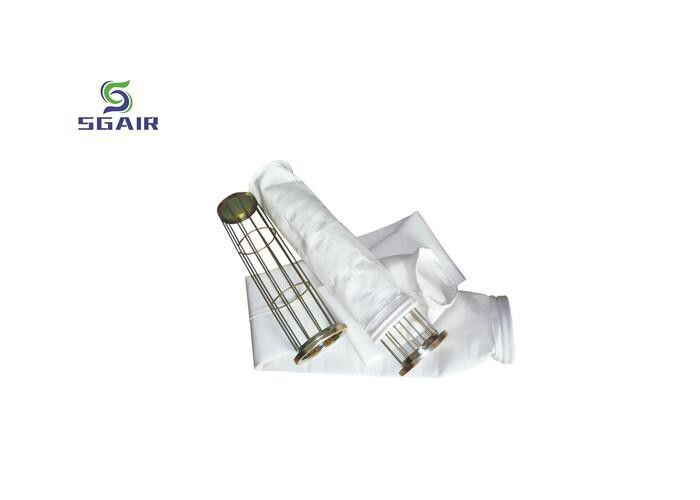

85% Dust Collector Bag Replacement 2.1mm Thickness for Air Purifying
Product Details:
| Place of Origin: | China |
| Brand Name: | SGAIR |
| Certification: | CE |
| Model Number: | Dust Bag Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export packing |
| Delivery Time: | 5-8 DAYS AFTER DEPOSIT |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 m² per month |
|
Detail Information |
|||
| Efficiency: | 55%-95% | Application: | Air Purifying |
|---|---|---|---|
| Size: | Customized | Material: | Fiber-glass |
| Condition: | New | Suitable For: | Dust Collect System |
| Highlight: | 2.1mm Dust Collector Bag Replacement,85% Dust Bag Filter,85% dust collector bag replacement |
||
Product Description
Easy To Clear Ash Dust Bag Filter Resists Flexing And Abrasion
Product Feature:
1) Its unique pleated design can double the available fabric filtering area in the same space as traditional cylindrical and oval filter bags.
2) The pleats are gathered at the top snap band so it can fit in the same cell plate hole as a standard bag of the same diameter.
3) Horizontal bands sewn to the fabric ensure the Pleated filter bag retains the pleats for its entire service life.
4) Our Pleated Filter Bag also has the characteristics of high strength, anti-acid, anti-alkali, wear resistance, anti-folding, easy to clear ash, water resistance, anti-oil, anti-static and so on.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
| Article Name | Nomex needled felt | |
| Ingredients | Fiber | 100% Nomex |
| Scrim | 100% Nomex | |
| Weight | g/m2 | 500 |
| Thickness | mm | 2.1 |
| Density | g/m³ | 0.24 |
| Permeability | L/dm2.min | 150 |
|
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
| Weft | ≥1000 | |
| Elongation @200N/5cm | Warp | <5 |
| Weft | <5 | |
|
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
| % | ≤1 | |
| Service Temperature(°C) | Continuous | 200 |
| Instant | 240 | |
| Finishing | Singeing, calendaring | |
Want to Know more details about this product
