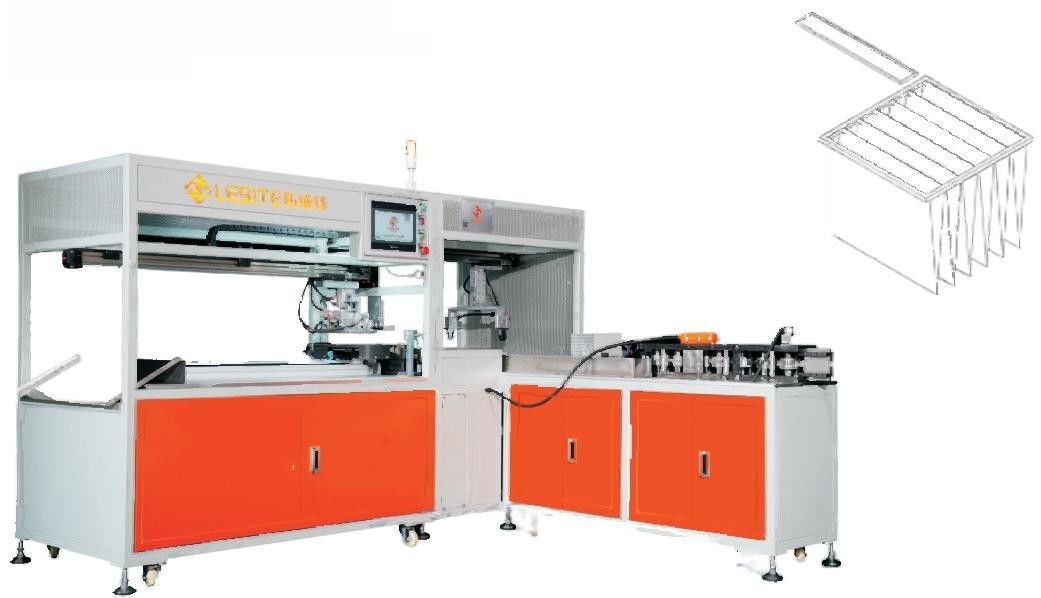

Fully automatic internal frame integrated molding machine
Product Details:
| Place of Origin: | china |
| Brand Name: | lesite |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden crate packaging |
| Delivery Time: | 1month |
| Payment Terms: | negotiation |
|
Detail Information |
|||
| Highlight: | Internal Frame Molding Machine,Fully Automatic Integrated Molding Machine,Internal Frame Integrated Molding Machine |
||
|---|---|---|---|
Product Description
产品用途/product usage
Bag filter inner frame fully automatic integrated molding machine, can customize inner frame size within a certain range, and can choose from various sheet thicknesses.
技术参数/Technical parameters
| 型号 Mode | T14mm | T16mm | T17mm |
| 使用板厚 Thickness of strip | 0.3-0.4mm | 0.3-0.4mm | 0.3-0.4mm |
| 板宽 Strip width | 21mm | 23mm | 24mm |
| 电源 Power supply | 220V | ||
| 气压 Air pressure | 0.6-0.7mpa | ||
| 电机总功率 Motor total power | 4.65kw | ||
| 生产速度 Production speed | 592*592*6P/15PCS/min | ||
| 外形总尺寸 Dimension(L*W*H) | 2640*1080*1680/1700*500*1000mm | ||
| 主机重量 Hostweight | 858kg | ||
| 适用材质 Applicable material | T14有花镀锌Galvanized iron 0.3*210.4*21(≤0.1mm) | ||
| 适用产品 Applicable product | 袋式过滤器,板式过滤器Bag filter,plate filter | ||
| 生产范围 Production range | 宽(wide)270-45mm,长(length)800-180mm | ||
