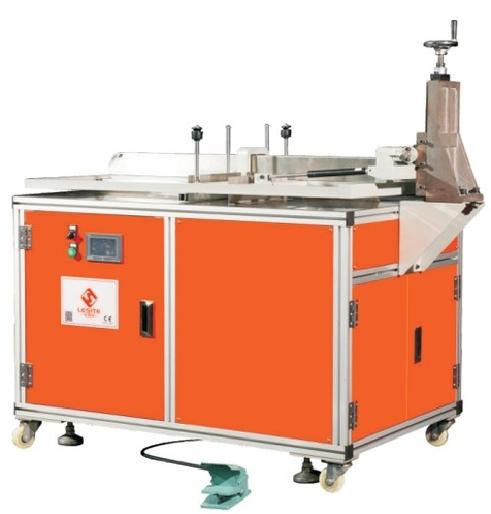

Full-automatic inner frame forming machine
Product Details:
| Place of Origin: | china |
| Brand Name: | lesite |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden crate packaging |
| Delivery Time: | 1month |
| Payment Terms: | negotiation |
|
Detail Information |
|||
| Highlight: | inner frame forming machine |
||
|---|---|---|---|
Product Description
产品用途/product usage

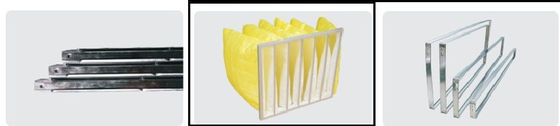

Bag filter inner frame semi-automatic forming machine, requires manual bending, can choose board thickness, customize inner frame size.
技术参数/Technical parameters
|
型号 Mode |
T14mm | T16mm | T17mm |
| 使用板厚 Thickness of strip | 0.3-0.4mm | 0.3-0.4mm | 0.3-0.4mm |
| 板宽 Strip width | 21mm | 23mm | 24mm |
| 电源 Power supply | 220V | ||
| 气压 Airpressure | 0.6-0.7mpa | ||
| 电机总功率 Motor total power | 1.1kw | ||
| 生产速度 Production speed | 592*592mm/8pcs(m/min) | ||
| 外形总尺寸 Dimension(L*W*H) | 1300*610*1500mm | ||
| 主机重量 Host weight | 380kg | ||
| 适用材质 Applicable material | T14有花镀锌Galvanized iron 0.3*210.4*21(≤0.1mm) | ||
| 适用产品 Applicableproduct | 袋式过滤器,板式过滤器Bag filter,plate filter | ||
| 生产范围 Production range | 宽(wide)Max-45mm,长(length)Max-45mm | ||
Want to Know more details about this product
