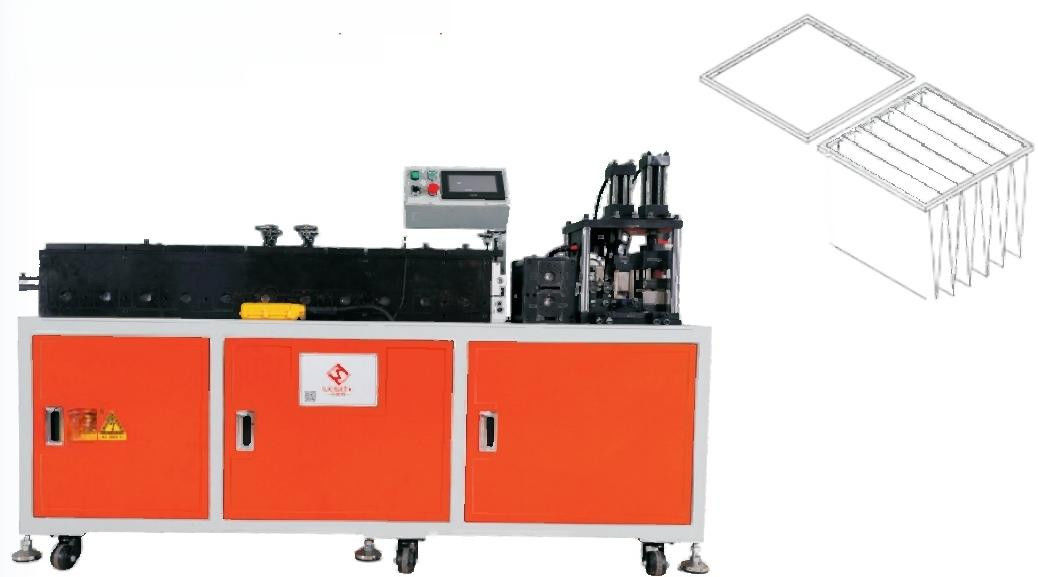

Fully Automatic Outer Frame Forming pocket filter making machine Side Cutting
Product Details:
| Place of Origin: | china |
| Brand Name: | lesite |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden crate packaging |
| Delivery Time: | 1month |
| Payment Terms: | negotiation |
|
Detail Information |
|||
| Highlight: | Fully Automatic pocket filter making machine,Outer Frame pocket filter making machine,Side Cutting pocket filter making machine |
||
|---|---|---|---|
Product Description
product usage

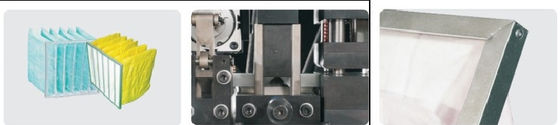

Used for forming the outer frame of initial effect bag filters and plate filters, with customizable sizes within a certain range, and the four corners are side cut
Technical parameters
| Mode | T21mm | T25mm | T46mm |
| Thickness of strip | 0.45mm | 0.45mm | 0.45mm |
| Strip width | 61mm | 65mm | 87mm |
| Power supply | 380V | ||
| Airpressure | 0.6-0.7mpa | ||
| Motor total powe | 4.7kw | ||
| Production speed | 592*592/5pcs(m/min) | ||
| Dimension(L*W*H) | 2300*570*1280mm | ||
| Host weight | 646kg | ||
| Applicable material | T21 galvanized iron)0.5*61(≤0.1mm) | ||
| Applicableproduct | Bag filter,plate filter | ||
| Production range | wideMax-50mm,length Max-50mm | ||
