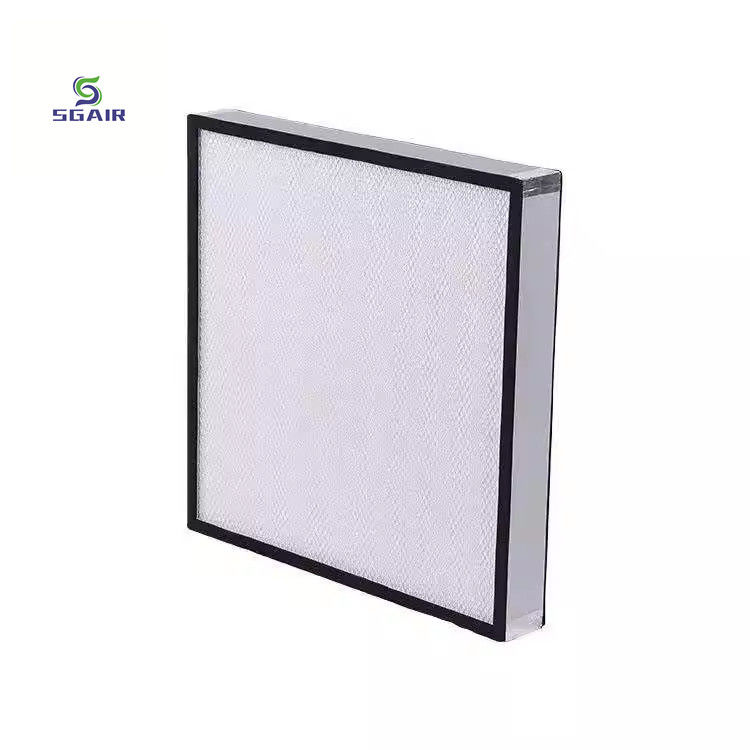

GI Frame High Temp Air Filter with Corrosion Resistance
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | High Temperature Air Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Frame Material: | Metal Or Stainless Steel | Keyword: | High Temperature Air Filter |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Brand: | SGAIR |
| Condition: | New | Feature: | High Durability |
| Highlight: | Corrosion Resistant Hepa Air Filter,EN 779 High Temp Air Filter,GI Frame Pleated Air Filter |
||
Product Description
Strong Corrosion Resistance High Temperature Air Filter Excellent Filtration Efficiency
- Media: Fiberglass
- Frame: GI; AI
- Efficiency range from F5,F6,F7,F8,F9 (EN 779)
- Average Efficiency: 45%;65%;85%;95%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 120 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 24 inch(600mm)
- No stitch holes emission.
- Gasket: EVA
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
The High Temperature Filter is a High Efficiency Particulate Air filter especially designed to remove airborne contaminants in critical areas, in which high efficiency on fine particulate matter is required and where hot air is used during the production process.
These filters are used in a broad range of industries, from the production of pharmaceutics, photos and films , to food processing.
There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose
Features:
Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled
| Size(HxWxD)mm | Rated Airflow(CMH) | Initial Resistance(Pa) | Final Resistance(Pa) |
| 320x320x220 | 400 |
120 |
500 |
| 484x484x220 | 1000 | ||
| 610x610x150 | 1000 | ||
| 820x600x150 | 1200 | ||
| 630x630x220 | 1500 | ||
| 968x484x220 | 2000 | ||
| 945x630x220 | 2200 | ||
| 1260x630x220 | 3000 |
