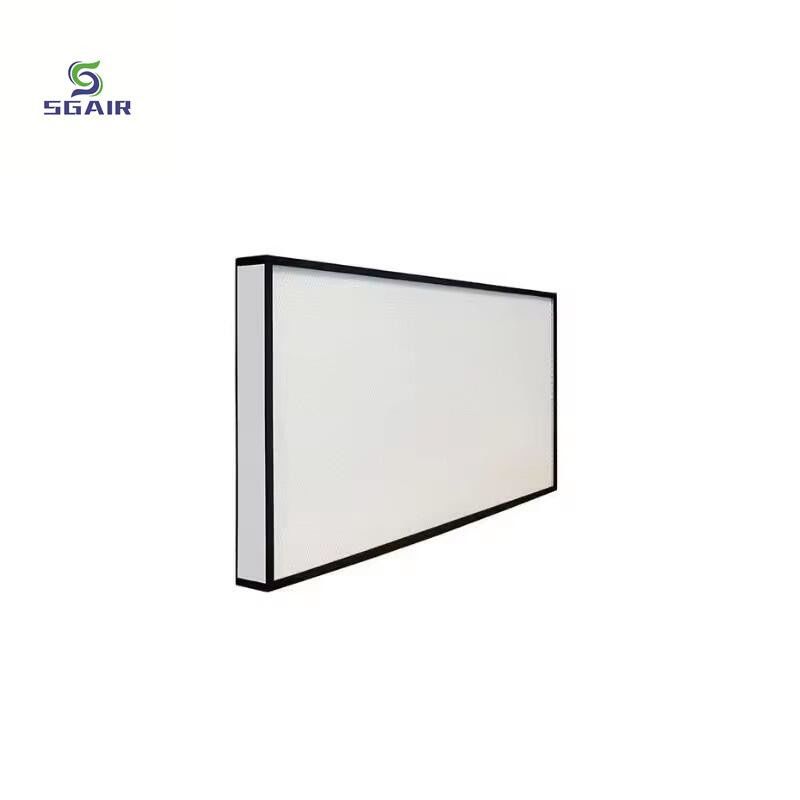

Fiberglass High Temperature Air Filter With Stainless Steel Frame
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | High Temperature Air Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Frame Material: | Metal Or Stainless Steel | Keyword: | High Temperature Air Filter |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Brand: | SGAIR |
| Condition: | New | Feature: | High Durability |
| Highlight: | Fiberglass High Temperature Air Filter,F9 High Temp Air Filter,220mm High Temperature Air Filter |
||
Product Description
High Temperature Air Filter Stainless Steel Frame And Aluminum Foil Partition
High temperature resistant filters are widely used in many fields, and they have good heat resistance. They are widely used in some long-term high temperature production environments (such as outdoor electronic screen filters, terminals of air conditioning and ventilation systems, food processing, etc.). At the same time, high temperature resistant and high efficiency filters have very high filtering accuracy and can provide clean air for places with very high cleanliness requirements such as dirty air, electronic components, semiconductors, optoelectronics and other production workshop environments. Of course, for industries such as biopharmaceuticals, circuit boards, and food processing. In places where the production environment temperature is high and the cleanliness of the production environment is required, high temperature resistant and high efficiency filters can also have good applications.
- Media: Fiberglass
- Frame: GI; AI
- Efficiency range from F5,F6,F7,F8,F9 (EN 779)
- Average Efficiency: 45%;65%;85%;95%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 120 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 24 inch(600mm)
- No stitch holes emission.
- Gasket: EVA
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
The High Temperature Filter is a High Efficiency Particulate Air filter especially designed to remove airborne contaminants in critical areas, in which high efficiency on fine particulate matter is required and where hot air is used during the production process.
These filters are used in a broad range of industries, from the production of pharmaceutics, photos and films , to food processing.
There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose
Features:
Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled
| Size(HxWxD)mm | Rated Airflow(CMH) | Initial Resistance(Pa) | Final Resistance(Pa) |
| 320x320x220 | 400 |
120 |
500 |
| 484x484x220 | 1000 | ||
| 610x610x150 | 1000 | ||
| 820x600x150 | 1200 | ||
| 630x630x220 | 1500 | ||
| 968x484x220 | 2000 | ||
| 945x630x220 | 2200 | ||
| 1260x630x220 | 3000 |
