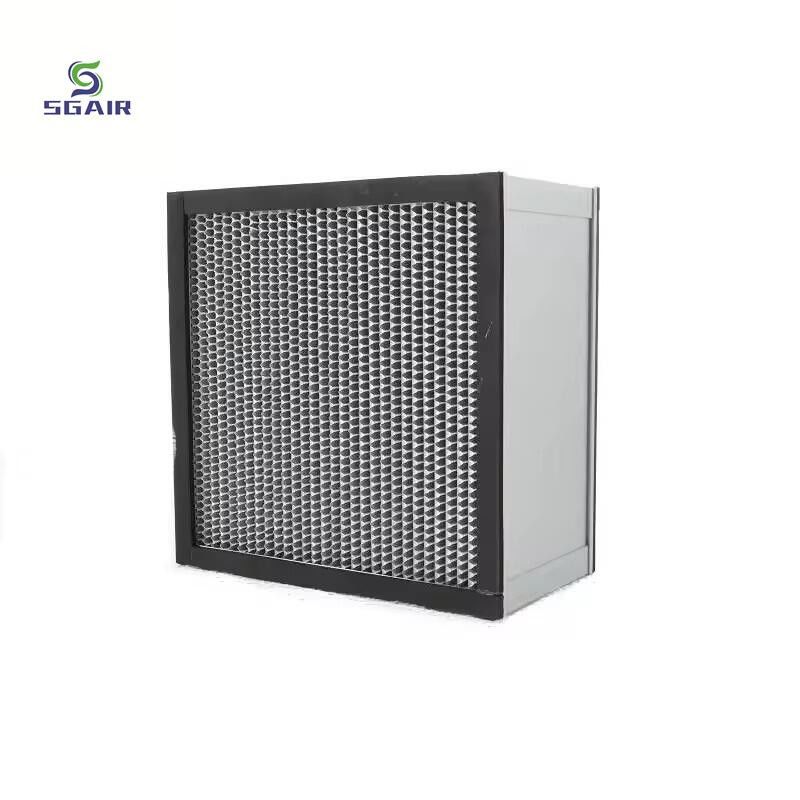

Aluminum Foil Partition High Temperature Air Filter with 1.5-2.00mm SS Frame
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | High Temperature Air Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Frame Material: | Metal Or Stainless Steel | Keyword: | High Temperature Air Filter |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Brand: | SGAIR |
| Condition: | New | Feature: | High Durability |
| Highlight: | Aluminum Foil Partition Air Filters,1.5mm Frame Hepa Air Filters,SS Frame Hepa Air Filters |
||
Product Description
Aluminum Foil Partition Stainless Steel Frame High Temperature Air Filter Long Life
High temperature and high efficiency air filter process features:
1. 1.5-2.00mm stainless steel frame with unique frame design increases overall strength.
2. 0.03mm aluminum foil partition arc corrugated groove peak can not only protect the filter paper from damage, but also reduce resistance and wind speed to pass evenly.
3. High quality glass fiber filter paper spacing of 4mm increases the filter area, large dust holding capacity, low resistance and high filtration efficiency.
4. Single component adhesive is used at 260 degrees for a long time, and the wedge heat-resistant sealing strip prevents leakage.
5. Glass fiber filter material, high temperature resistant special rubber sealing pad.
6. High temperature resistant and high efficiency filter can be used for instantaneous maximum temperature up to 300 degrees, constant temperature up to about 260 degrees, and stable and reliable performance.
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose
Features:
Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled
| Size(HxWxD)mm | Rated Airflow(CMH) | Initial Resistance(Pa) | Final Resistance(Pa) |
| 320x320x220 | 400 |
120 |
500 |
| 484x484x220 | 1000 | ||
| 610x610x150 | 1000 | ||
| 820x600x150 | 1200 | ||
| 630x630x220 | 1500 | ||
| 968x484x220 | 2000 | ||
| 945x630x220 | 2200 | ||
| 1260x630x220 | 3000 |
