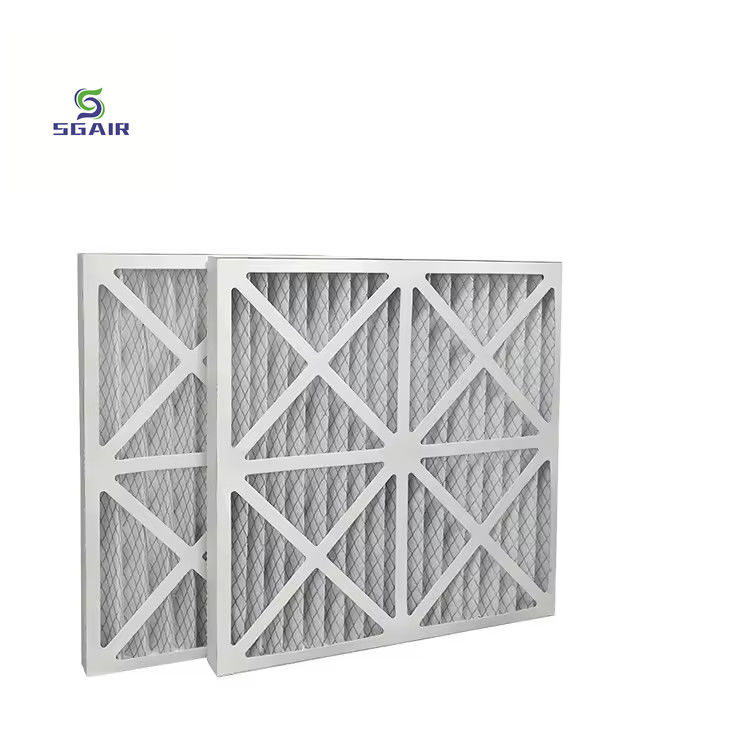

Wet Laid Fine Fiber Pleated Air Filters With E10-H13 High Efficiency Filtration
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Pleated Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Material: | Wet-laid Fine Fiber | Keyword: | Pleated Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | MERV 13 / 14, E10-H13 |
| Condition: | New | Feature: | High Durability |
| Highlight: | Wet Laid Fine Fiber Pleated Filters,E10 Pleated Air Filters,H13 Pleated Air Filters |
||
Product Description
High Efficiency Filtration Pleated Air Filters Energy Saving And Environmental Protection
Description:
- Media: Polypropylene or glass fibre paper
- Separator:Hot-melt beads
- Frame: Galvanized Steel
- Efficiency range from F9 ,H10,H11,H13(EN 1822)
- Initial resistance: 110 Pa
- Recommended final pressure drop : 600Pa
- Humidity resistance: 100%
- Max Temperature: 80 ℃
- Sealant: Polyurethane rubber PU
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Gasket: one piece half round continuous gasket
- Available in Box or Single flange type.
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
1. Home environment
Home is the main place for our daily life. HEPA filters can effectively remove dust, pollen, pet hair, etc. in the home, improve indoor air quality, and are very helpful to residents' health.
2. Medical places
Hospitals, clinics and other medical places have high requirements for air cleanliness. HEPA filters can filter harmful substances such as bacteria and viruses to ensure the health and safety of patients and medical staff.
3. Clean workshops
For clean workshops in the pharmaceutical, semiconductor, aerospace and other industries, HEPA filters can effectively remove various tiny particles and maintain an ultra-clean air environment.
There are 45%, 65%, 85%, 95%, 98% five kinds of efficiency of the bag filter can choose
Features:
Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled
Specifications:
| Size(WxHxD)mm | Filter Efficiency | Media area m3 | Airflow/pressure drop m3/h/Pa |
| 305x610x292 | E10 | 14 | 2000/160 |
| 595x595x292 | E10 | 21 | 4000/160 |
| 610x610x292 | E10 | 35 | 5000/160 |
| 305x610x292 | E12 | 16 | 1500/110 |
| 595x595x292 | E12 | 33 | 3400/110 |
| 610x610x292 | E12 | 40 | 4000/110 |
| 289x595x292 | H13 | 16 | 1300/110 |
| 595x595x292 | H13 | 38 | 3200/110 |
| 610x610x292 | H13 | 40 | 4000/110 |
