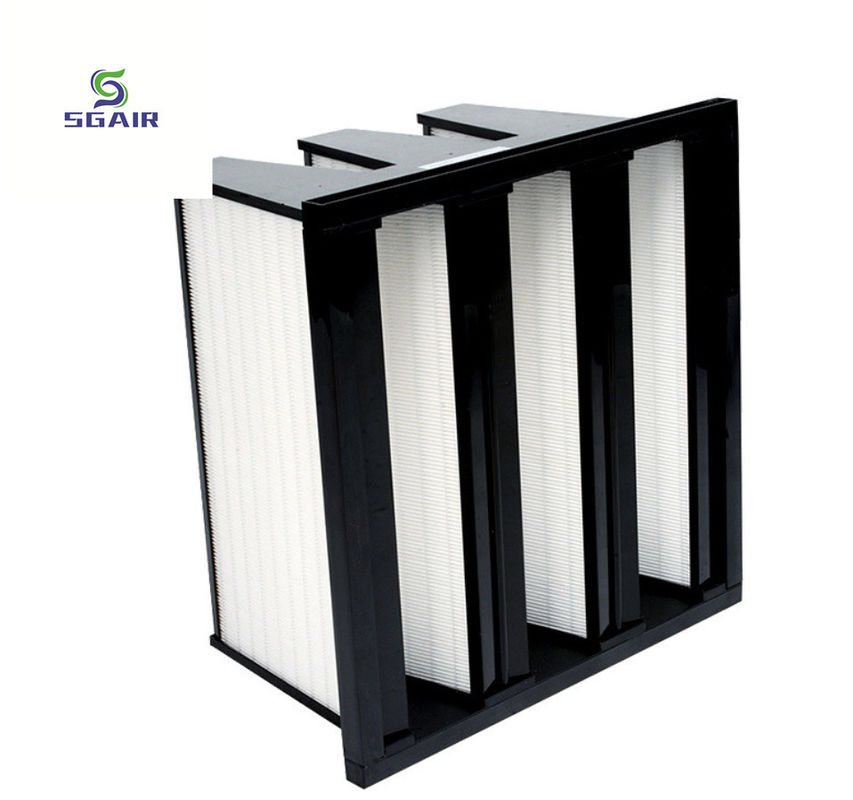

Compact Dense Pleated Hepa Filter With F9 Efficiency
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Pleated Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Material: | Wet-laid Fine Fiber | Keyword: | Pleated Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | F9 |
| Condition: | New | Feature: | High Durability |
| Highlight: | Dense Pleated Hepa Filter,F9 Pleated Hepa Filter,Compact Pleated Hepa Filter |
||
Product Description
Compact Design Large Filter Area Pleated Air Filters Low Pressure Loss
The dense pleated filter is a type of air filter, and its filtering principle is the adsorption method. It has a compact structure, saves space, has a large effective filtering area, low resistance, long service life, and good stability.
Pleated air filters have the following main features:
1. Large surface area: Pleated filter media has a large specific surface area and can effectively capture more particles.
2. Low pressure loss: Compared with flat filters, pleated structures can maintain lower pressure loss at higher flow rates.
3. High filtration efficiency: Pleated filter media can capture smaller particles, thereby improving filtration efficiency.
4. Strong durability: Pleated structures can withstand greater pressure and temperature and have a longer service life.
5. Easy to clean: Pleated structures facilitate the cleaning and reuse of filter media.
6. Compact design: Compared with flat filters, pleated filters are smaller and more compact.
|
Nominal size
|
Actual size
|
Partition
|
Flange
|
Rated air volume
|
|
(inch)
|
(mm)
|
(V)
|
(non/single)
|
(m3/h)
|
|
W×H×D
|
W×H×D
|
|
|
|
|
12×24×12
|
287×592×292
|
2V
|
Single flange
|
1200
|
|
24×12×12
|
592×287×292
|
4V
|
Single flange
|
1200
|
|
24×20×12
|
592×492×292
|
4V
|
Single flange
|
2200
|
|
24×24×12
|
592×592×292
|
4V
|
Single flange
|
2700
|
|
12×24×12
|
305×610×292
|
2V
|
Non-flange
|
1400
|
|
24×24×12
|
610×610×292
|
4V
|
Non-flange
|
3000
|
|
Nominal size
|
Surface air speed
|
Rated initial resistance
|
Recommended final resistance
|
|||
|
(inch)
|
(m/s)
|
(Pa)
|
(Pa)
|
|||
|
W×H×D
|
|
F6
|
F7
|
F8
|
F9
|
Double initial resistance
|
|
12×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×12×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×20×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
12×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
1. Home environment
Home is the main place for our daily life. HEPA filters can effectively remove dust, pollen, pet hair, etc. in the home, improve indoor air quality, and are very helpful to residents' health.
2. Medical places
Hospitals, clinics and other medical places have high requirements for air cleanliness. HEPA filters can filter harmful substances such as bacteria and viruses to ensure the health and safety of patients and medical staff.
