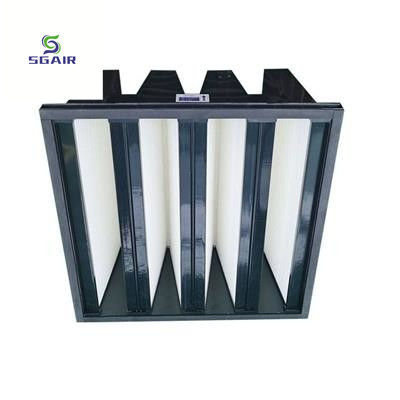

Customized Pleated Air Filters Low Pressure for Clean room
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Pleated Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Material: | Wet-laid Fine Fiber | Keyword: | Pleated Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | F9 |
| Condition: | New | Feature: | High Durability |
| Highlight: | Customized Pleated Air Filters,Cleanroom Pleated Air Filter,Low Pressure Loss Pleated Air Filters |
||
Product Description
Filter Area Pleated Air Filters Low Pressure Loss Large Effective Filtration Area
The dense pleated filter is a type of air filter, and its filtering principle is the adsorption method. It has a compact structure, saves space, has a large effective filtering area, low resistance, long service life, and good stability.
Pleated air filters have the following main features:
1. Large filtration area: The pleated air filter can significantly increase the filtration area through the folded structure, thereby improving the filtration efficiency. This design not only increases the surface area of the filter material, but also enables the filter to achieve better filtration effect in a limited space
2. Large dust holding capacity: The filter material of the pleated air filter is made of high-quality synthetic fibers, which has a large dust holding capacity and can capture larger particles of dust and various large-volume debris while maintaining low resistance, so that the filter can maintain a high efficiency during use
|
Nominal size
|
Actual size
|
Partition
|
Flange
|
Rated air volume
|
|
(inch)
|
(mm)
|
(V)
|
(non/single)
|
(m3/h)
|
|
W×H×D
|
W×H×D
|
|
|
|
|
12×24×12
|
287×592×292
|
2V
|
Single flange
|
1200
|
|
24×12×12
|
592×287×292
|
4V
|
Single flange
|
1200
|
|
24×20×12
|
592×492×292
|
4V
|
Single flange
|
2200
|
|
24×24×12
|
592×592×292
|
4V
|
Single flange
|
2700
|
|
12×24×12
|
305×610×292
|
2V
|
Non-flange
|
1400
|
|
24×24×12
|
610×610×292
|
4V
|
Non-flange
|
3000
|
|
Nominal size
|
Surface air speed
|
Rated initial resistance
|
Recommended final resistance
|
|||
|
(inch)
|
(m/s)
|
(Pa)
|
(Pa)
|
|||
|
W×H×D
|
|
F6
|
F7
|
F8
|
F9
|
Double initial resistance
|
|
12×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×12×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×20×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
12×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
|
24×24×12
|
2.50
|
110
|
120
|
130
|
140
|
Double initial resistance
|
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
Air pre-filtration in central air conditioning and centralized ventilation systems, inlet filtration and clean return air systems for gas turbines and centrifugal air compressors, etc.
