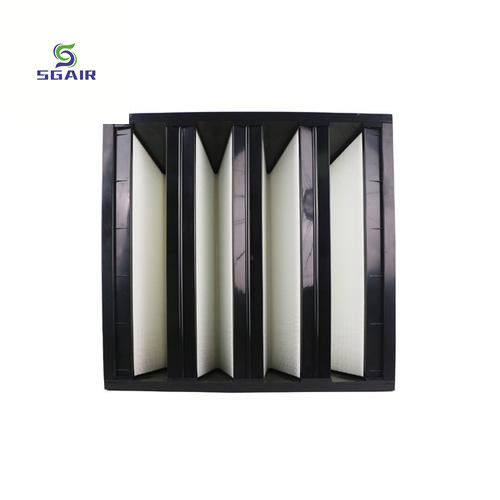

Pleated F9 Air Filter Corrosion Resistant With Compact Structure
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Pleated Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Material: | Wet-laid Fine Fiber | Keyword: | Pleated Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | F9 |
| Condition: | New | Feature: | High Durability |
| Highlight: | Pleated F9 Air Filter,Corrosion Resistant F9 Air Filter,Compact Structure F9 Air Filter |
||
Product Description
Compact Structure Filter Area Pleated Air Filters Long Service Life And Good Stability
The dense pleated filter is a type of air filter, and its filtering principle is the adsorption method. It has a compact structure, saves space, has a large effective filtering area, low resistance, long service life, and good stability.
Pleated air filters have the following main features:
1. Large filtration area: The pleated air filter can significantly increase the filtration area through the folded structure, thereby improving the filtration efficiency. This design not only increases the surface area of the filter material, but also enables the filter to achieve better filtration effect in a limited space.
2. Large dust holding capacity: The filter material of the pleated air filter is made of high-quality synthetic fiber, which has a large dust holding capacity and can capture larger particles of dust and various large-volume debris, while maintaining low resistance, so that the filter can maintain a high efficiency during use.
3. Low resistance: Due to the folded structure, the pleated air filter can maintain a large filtration area while maintaining low resistance, which is particularly important for systems that require high-efficiency filtration because it can reduce energy consumption and improve the energy efficiency of the system.
4. Economical and practical: The pleated air filter has a low cost and can reduce maintenance costs during use because its filter material has a long service life and a high dust holding capacity, which reduces the frequency of filter material replacement1
Nominal size | Actual size | Partition | Flange | Rated air volume |
(inch) | (mm) | (V) | (non/single) | (m3/h) |
W×H×D | W×H×D | |||
12×24×12 | 287×592×292 | 2V | Single flange | 1200 |
24×12×12 | 592×287×292 | 4V | Single flange | 1200 |
24×20×12 | 592×492×292 | 4V | Single flange | 2200 |
24×24×12 | 592×592×292 | 4V | Single flange | 2700 |
12×24×12 | 305×610×292 | 2V | Non-flange | 1400 |
24×24×12 | 610×610×292 | 4V | Non-flange | 3000 |
Nominal size | Surface air speed | Rated initial resistance | Recommended final resistance | |||
(inch) | (m/s) | (Pa) | (Pa) | |||
W×H×D | F6 | F7 | F8 | F9 | Double initial resistance | |
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×12×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×20×12 | 2.50 | 110 | 120 |
130 | 140 | Double initial resistance |
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
Air pre-filtration in central air conditioning and centralized ventilation systems, inlet filtration and clean return air systems for gas turbines and centrifugal air compressors, etc.
