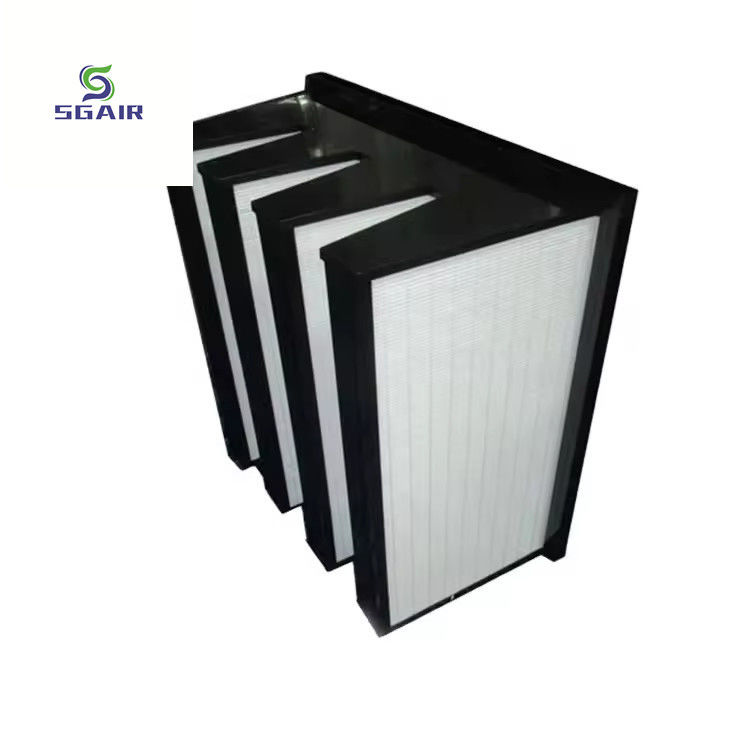

H10 Pleated Air Filters Reused Customized Anti Corrosion
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SGAIR |
| Certification: | CE / ISO9001 |
| Model Number: | Pleated Air Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS Per Week |
|
Detail Information |
|||
| Material: | Wet-laid Fine Fiber | Keyword: | Pleated Air Filters |
|---|---|---|---|
| Application: | Clean Room / Hotel / Industry | Size: | Customized |
| Logo: | SGAIR / OEM | Efficiency: | F6, F7, F8, F9, H10 |
| Condition: | New | Feature: | High Durability |
| Highlight: | H10 Pleated Air Filters,Anti Corrosion Pleated Air Filters,Reused Pleated Air Filters |
||
Product Description
Large Filter Area Pleated Air Filters Easy To Clean And Reuse
The dense pleated filter is a type of air filter, and its filtering principle is the adsorption method. It has a compact structure, saves space, has a large effective filtering area, low resistance, long service life, and good stability.
Filtration efficiency:
European specifications F6, F7, F8, F9, H10, equivalent to China's "medium efficiency", "high efficiency" and "sub-high efficiency", American specifications MERV10, MERV11, MERV12, MERV13, MERV14, MERV15, old European specifications EU6-EU10
Nominal size | Actual size | Partition | Flange | Rated air volume |
(inch) | (mm) | (V) | (non/single) | (m3/h) |
W×H×D | W×H×D | |||
12×24×12 | 287×592×292 | 2V | Single flange | 1200 |
24×12×12 | 592×287×292 | 4V | Single flange | 1200 |
24×20×12 | 592×492×292 | 4V | Single flange | 2200 |
24×24×12 | 592×592×292 | 4V | Single flange | 2700 |
12×24×12 | 305×610×292 | 2V | Non-flange | 1400 |
24×24×12 | 610×610×292 | 4V | Non-flange | 3000 |
Nominal size | Surface air speed | Rated initial resistance | Recommended final resistance | |||
(inch) | (m/s) | (Pa) | (Pa) | |||
W×H×D | F6 | F7 | F8 | F9 | Double initial resistance | |
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×12×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×20×12 | 2.50 | 110 | 120 |
130 | 140 | Double initial resistance |
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
12×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
24×24×12 | 2.50 | 110 | 120 | 130 | 140 | Double initial resistance |
Advantage
1. Large filtration area
2. Unique structure and open bag
3. High dust capacity
4. Long life
5. Low energy consumption
6. Anti-corrosion
7. Simple recycling
Application
1. Home environment
Home is the main place for our daily life. HEPA filters can effectively remove dust, pollen, pet hair, etc. in the home, improve indoor air quality, and are very helpful to residents' health.
2. Medical places
Hospitals, clinics and other medical places have high requirements for air cleanliness. HEPA filters can filter harmful substances such as bacteria and viruses to ensure the health and safety of patients and medical staff.
Features:
1. Large surface area: Pleated filter media has a large specific surface area and can effectively capture more particles.
2. Low pressure loss: Compared with flat filters, the pleated structure can maintain lower pressure loss at higher flow rates.
Specifications:
| Size(WxHxD)mm | Filter Efficiency | Media area m3 | Airflow/pressure drop m3/h/Pa |
| 305x610x292 | E10 | 14 | 2000/160 |
| 595x595x292 | E10 | 21 | 4000/160 |
| 610x610x292 | E10 | 35 | 5000/160 |
| 305x610x292 | E12 | 16 | 1500/110 |
| 595x595x292 | E12 | 33 | 3400/110 |
| 610x610x292 | E12 | 40 | 4000/110 |
| 289x595x292 | H13 | 16 | 1300/110 |
| 595x595x292 | H13 | 38 | 3200/110 |
| 610x610x292 | H13 | 40 | 4000/110 |
